SCREW & COIL CONVEYORS

D.SCREW & COIL CONVEYOR

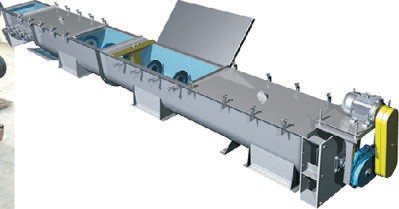

SCREW CONVEYORS are used for powder materials, with low powder coats and a minimum

powder emission. The screw conveyor has a constant volumetric according to speed. It may

be exposed to a head of material and by having a correctly designed flight and with variation

in the speed can be used to control and feed equipment at a uniform metered rate down the

process stream, eliminating surges in the process. In many situations it is the only device that

can be used as a feeder.

Material of Construction

• Carbon Steel
• Low Allloy Steel
• Wear Resistance Steel
• Stainless Steel

Features

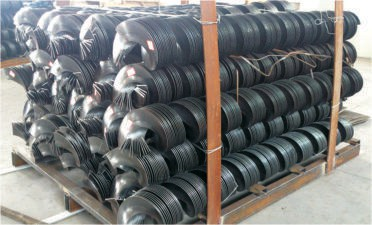

• A single pitch construction with consistent cross sectional thickness between inner & outer edges
• Every screw conveyor section is formed accurately up to the customers’ size.
• A wide range of size up to 2000 mm in diameter, 40 mm in thickness, 1500 mm in pitch are available.
• Ribbon, Tapered & variable pitch flights are available on application.
• Flights can also be hard faced or coated with wear protection materials.
• High precision and customized size can be made.
