CHAIN BELT CONVEYORS

Strong output for a wide range of applications

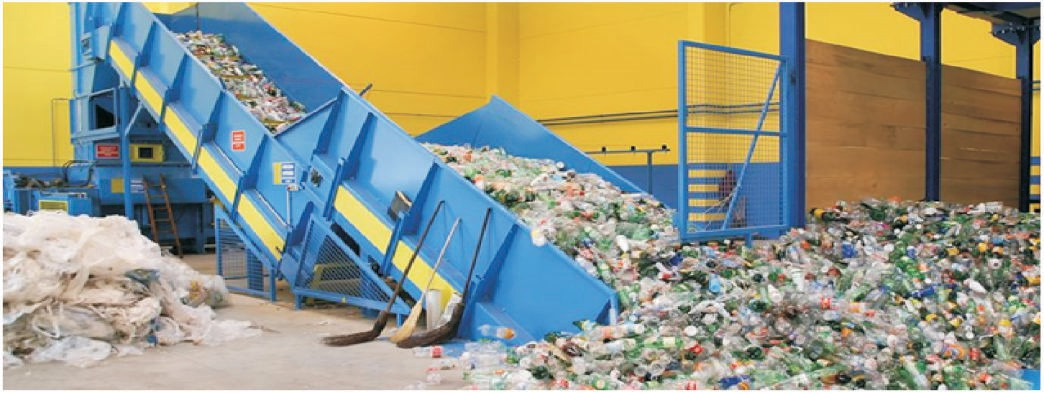

Due to their stable and heavy-duty design, chain belt conveyors are preferred in the recycling industry. The high

stability coincides with a remarkable flexibility with subsequent expansion or conversion options according to

the respective requirements. .

Chain belt conveyors can be fitted with rubber. All chain belt conveyors have a heavy-duty welded modular

frame construction, with high vertical side pieces, complete with high-quality bearings and gearboxes. All

chain belt conveyors can be fitted with variable speed controls.

Main features:

• Useful widths of 800 to 2.000 mm.
• By default, with chain pitch 100 mm, for medium load 125 mm and for heavy duty load 200 mm.
• Screwed-on wear rails on solid cross-beams.
• Height of side walls: 300-750 mm (horizontal part) and 300-1.250 mm (ascending part).
